A wide range of accessories to perform the total safety vacuum blood collection.





A full range of disposable Devices to be used in conformity to the procedures of use on force at the health structures and it is designed to guarantee the maximum safety of the operators. They are compatible with all Vacuaptaca® tubes and needles.

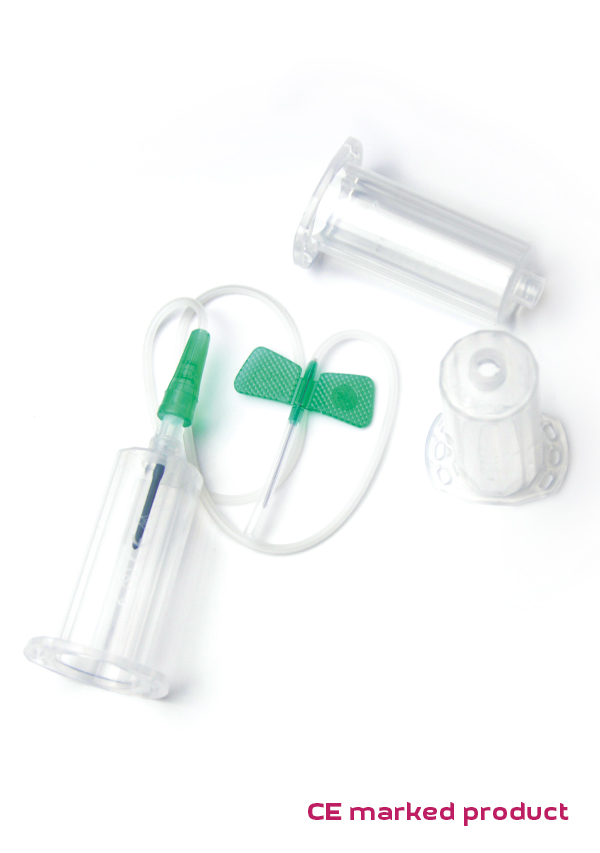

COD.31300   Vacuum collection disposable Holder, in polypropylene.

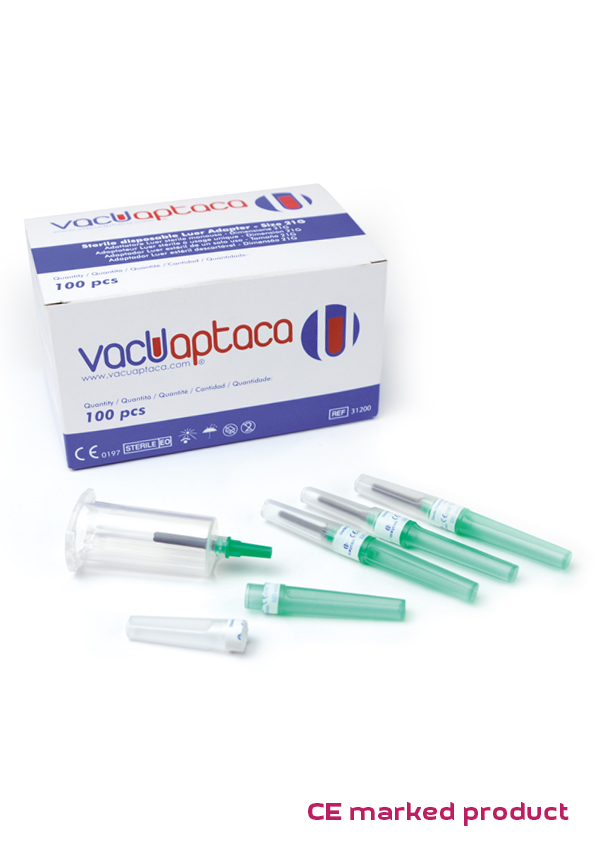

COD.31200   Luer adapter, sterile, disposable. Needle size 21G, green colour.





Butterfly needles, without Luer adapter, consist of an intravenous cannula, two fins, a tube equipped with a terminal fitting with unscrewable Luer/Lock cap suitable to use with luer adapter cod. 31200. Available as well with safety Device. Sterile, non-toxic, Pyrogen free.

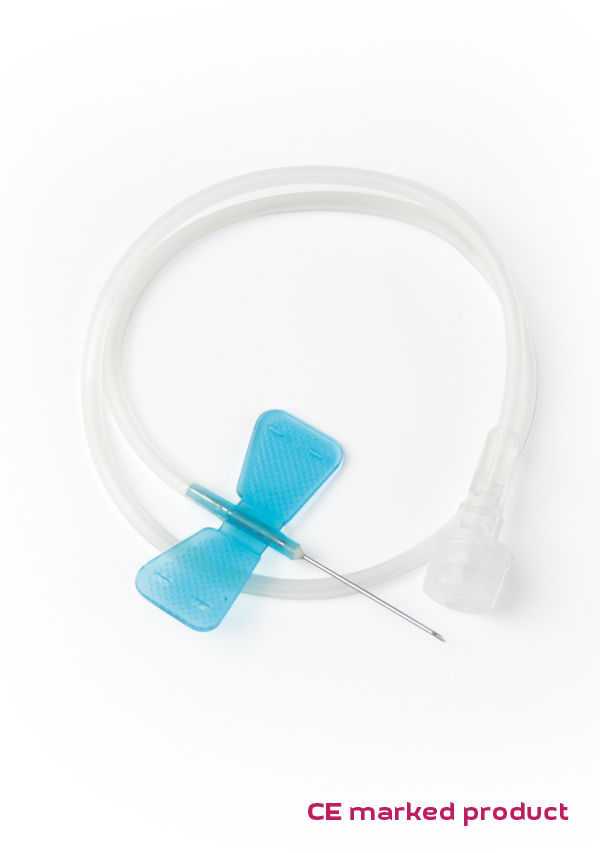

COD.3141   21G (Ø 0.80 x 19 mm) – Green.	COD.3143   23G (Ø 0.60 x 19 mm) – Blue.

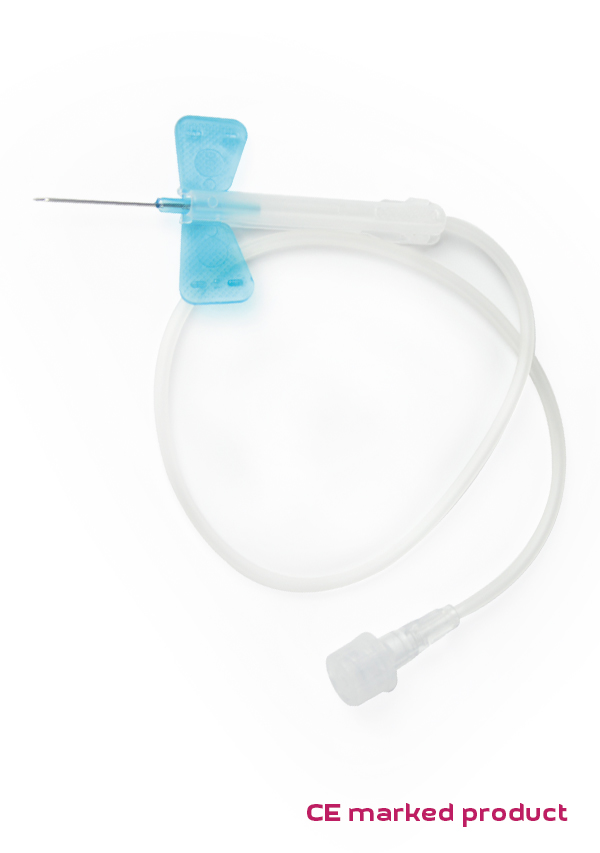

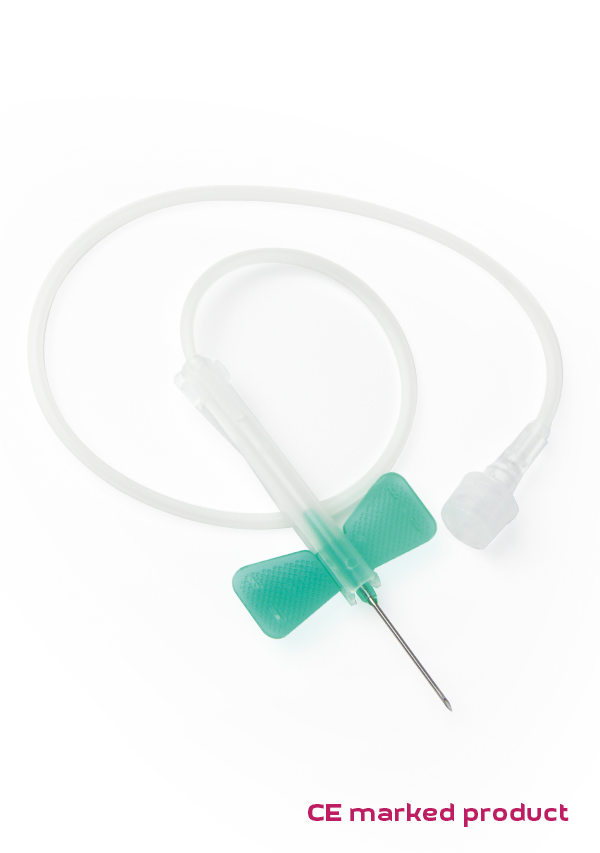

COD.3151   21G (Ø 0.80 x 19 mm) SAFETY DEVICE – Green.	COD.3153   23G (Ø 0.60 x 19 mm) SAFETY DEVICE – Blue.







Multi-sample needles in ultra thin steel wall for vacuum system collection.

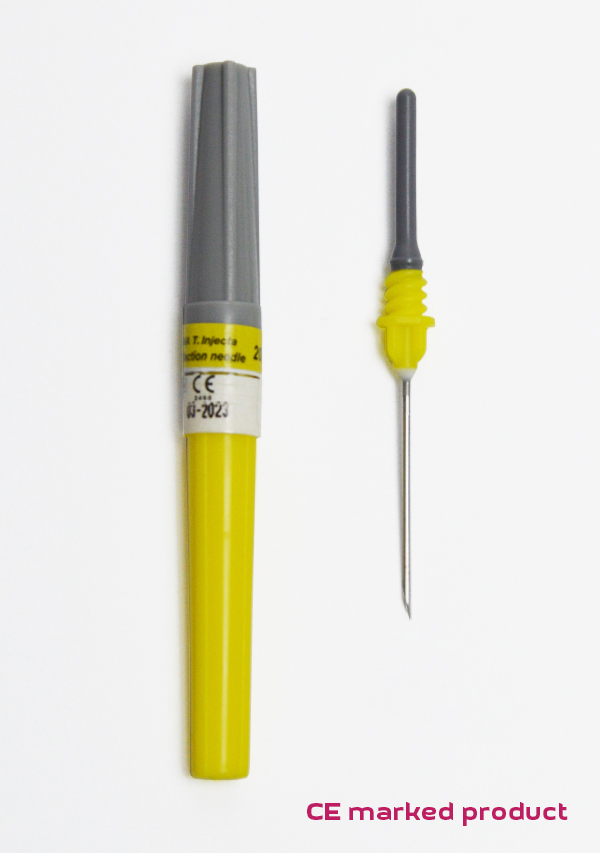

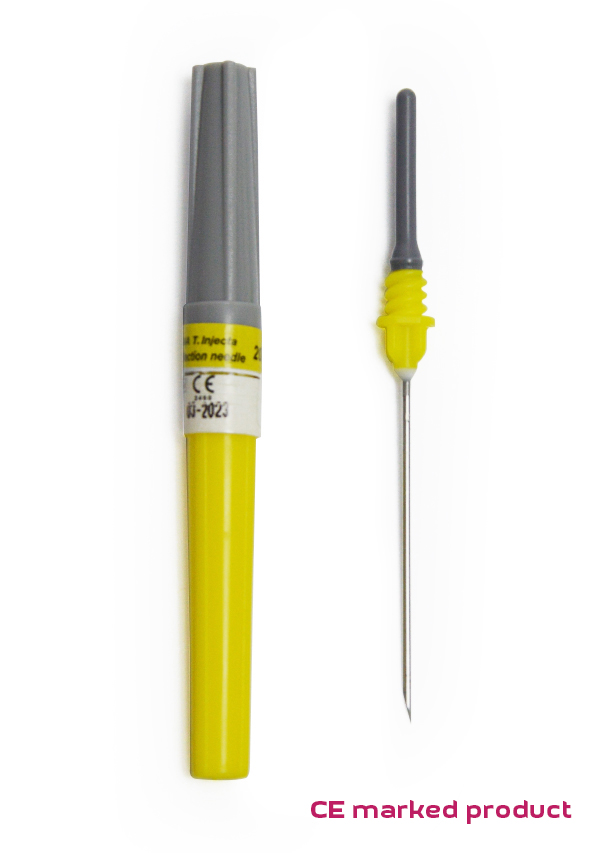

COD.31120   Vacuum tube multi-sample needle 20G x 1”, yellow, sterile.	COD.31220   Vacuum tube multi-sample needle 20G x 1 1/2”, yellow, sterile.
COD.31121   Vacuum tube multi-sample needle 21G x 1”, green, sterile.	COD.31221   Vacuum tube multi-sample needle 21G x 1 1/2”, green, sterile.
COD.31122   Vacuum tube multi-sample needle 22G x 1”, black, sterile.	COD.31222   Vacuum tube multi-sample needle 22G x 1 1/2”, black, sterile.







Blood collection set composed by butterfly needle in ultra thin steel wall, Luer adapter compatible with the most part of the holders in commerce and small fitting tube.

Butterfly needles with safety device, designed to prevent accidental puncture in order to guarantee maximum safety of the Operators during the collection and disposal phases of the needle. Once the collection is finished it is possible to slide the needle inside the plastic protection and avoid the risk of accidental puncture. The needle will be fully remoted and securely locked into a closed system.



Safety Butterfly needle with Luer adapter mounted and tube lenght 180 mm, sterile, individually wrapped. Non-toxic, Pyrogen free.   COD.31182 21G – Green	Safety Butterfly needle with Luer adapter mounted and tube lenght 180 mm, sterile, individually wrapped. Non-toxic, Pyrogen free.   COD.33182 23G – Blue

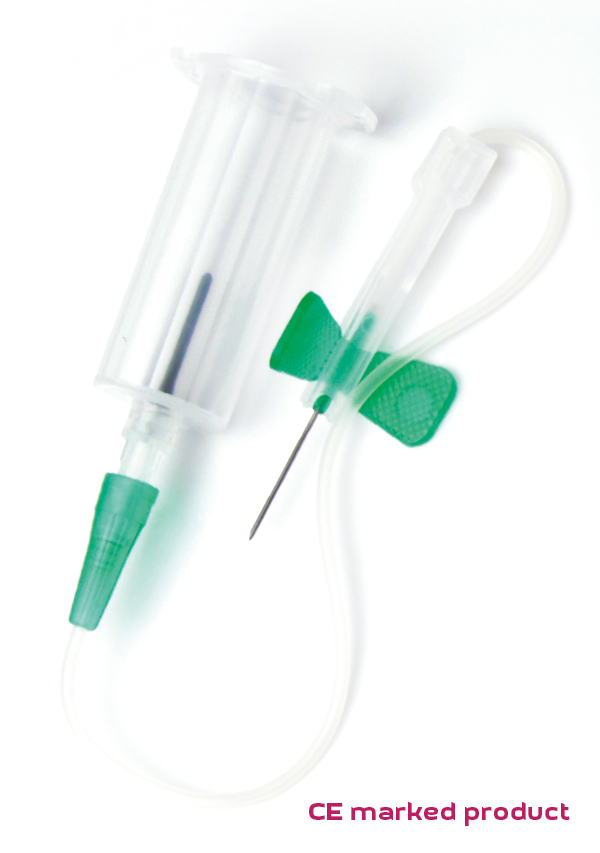

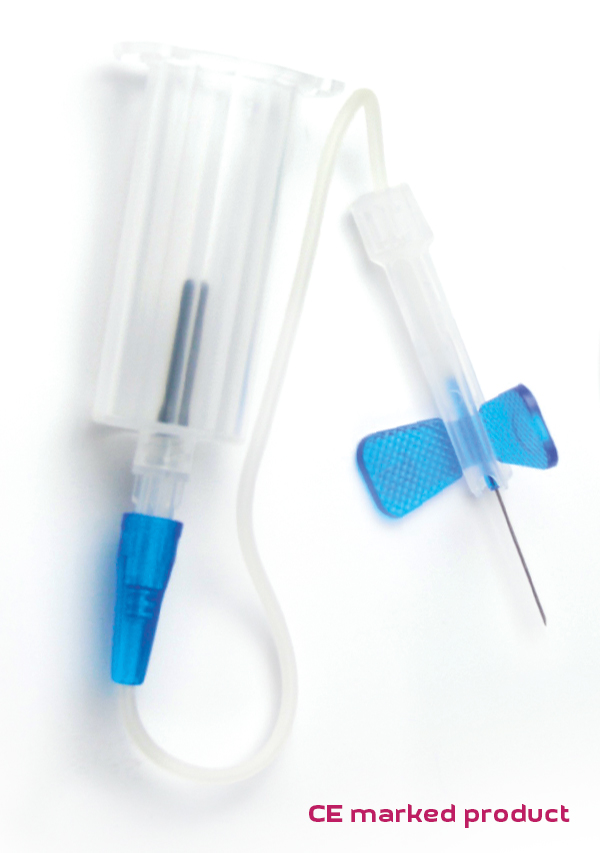

Safety Butterfly needle with Luer adapter mounted, tube lenght 180 mm and with pre-attached holder. Sterile, individually wrapped. Non-toxic, Pyrogen free.   COD.31183 21G – Green	Safety Butterfly needle with Luer adapter mounted, tube lenght 180 mm and with pre-attached holder. Sterile, individually wrapped. Non-toxic, Pyrogen free.   COD.33183 23G – Blue

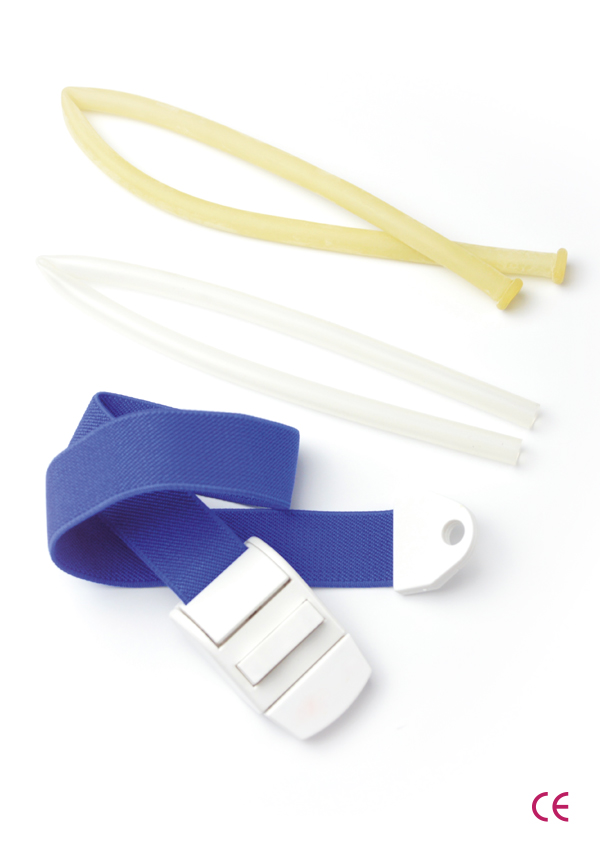

Tourniquets. COD.3530 Latex, with rim - 400 mm. COD.3540 Latex free, without rim - 375 mm. COD.3550 Elastic material with instantaneous release - 400 mm.

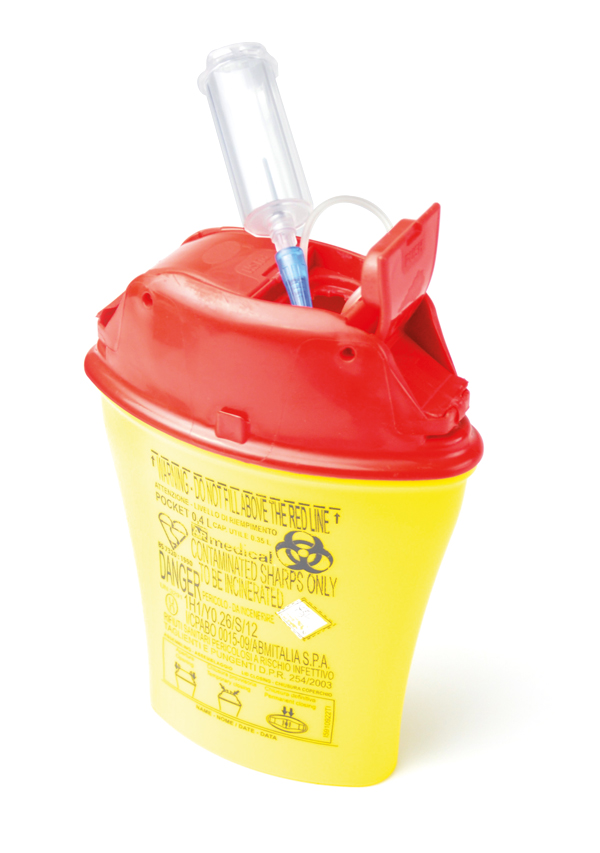

COD.8104 Sharp pocket size containers, provided with ergonomic shape and possible side fastening. Lid with double opening system, temporary and permanent closure. Maximum filling level indicator. Conform to ISO 23907. Volume 0.4 liter – Dimensions 123 x 62 x 165 mm.

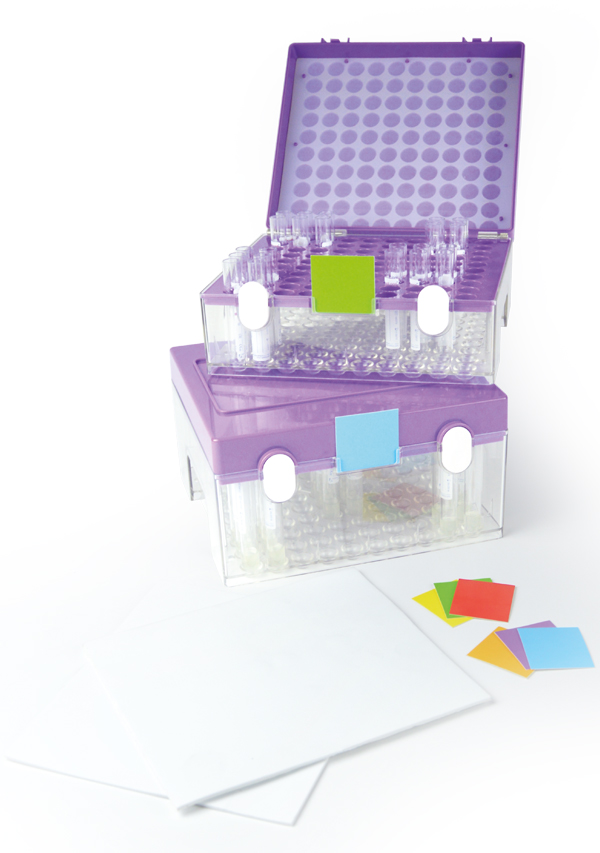

Storage boxes for vacuum tubes. Manufactured in ABS, they can contain up to 100 tubes, stackable. Available for both Ø13x75 mm and Ø13x100 mm (Ø max 14 mm) tubes version. The test tubes can be placed, after picking, without the cap, and can be sealed with two different methods, supplied with the storage box:
- Silica Gel Pad: Flexible and non-deformable, it seals the tubes while the lid is closed.
- Sticky Foam pad: Strong adhesion to the tubes while closing the lid, easy and convenient for disposal without contamination risk.

COD.10494 For test tubes Ø 13 x 75 mm. - Dim. 200 x 190 x 85 mm.   COD.10495 For test tubes Ø 13 x 100 mm. - Dim. 200 x 190 x 110 mm.







A line of containers conform to UN 3373 (biological substance Cat. B), studied for a safe transport of biological material, starting from samples collection to the arrival in the laboratory of analysis. All bags are provided with handle, zip closure and sealing possibility, internal compartment and external transparent pocket for documents, compartment for cool accumulators.

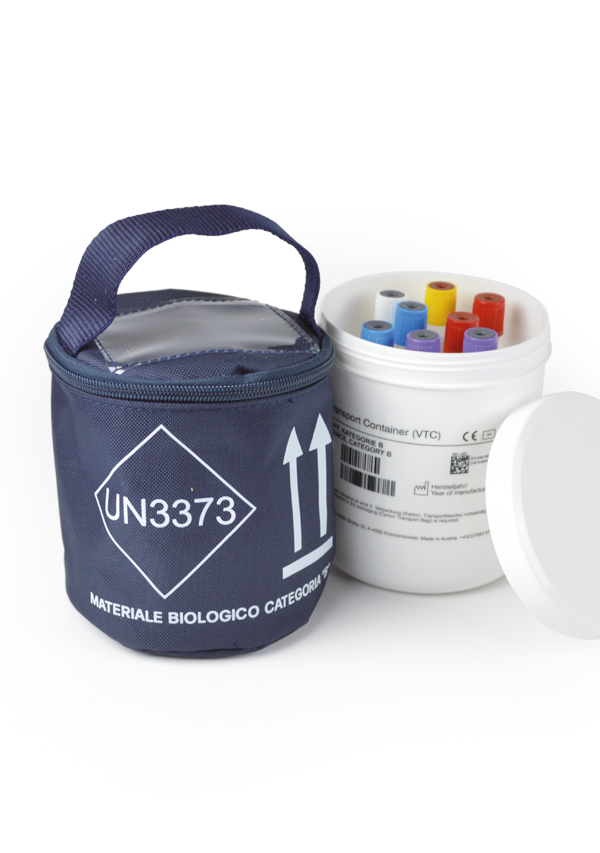

Cylindrical container with hermetic closure and foam insert for transporting of n°12 test tubes Ø 12-16 mm. Classified as secondary container according to ADR/RID regulations.
Round bag for transporting of one container cod. 6701. Classified as external container (3° container) according to ADR/RID regulations.

COD.6701 container - Ø 113 x 130 mm.   COD.6800 bag - Ø 120 x 150 mm.

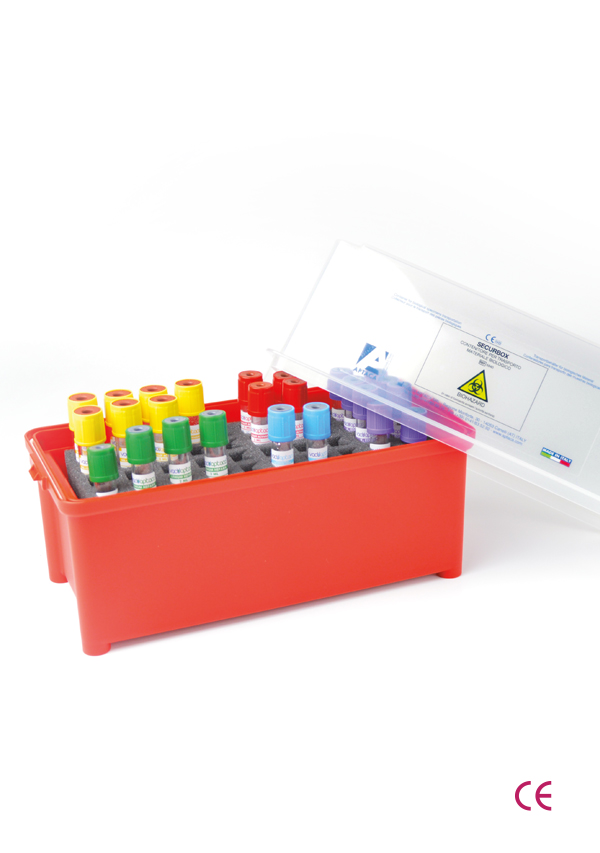

40 places test tubes rack with hermetic lid with seal and safety locks, complete of foam insert for test tubes Ø 12-16 mm. Classified as secondary container according to ADR/RID regulations. Dim. 215 x 125 x 180 mm.

COD.6840

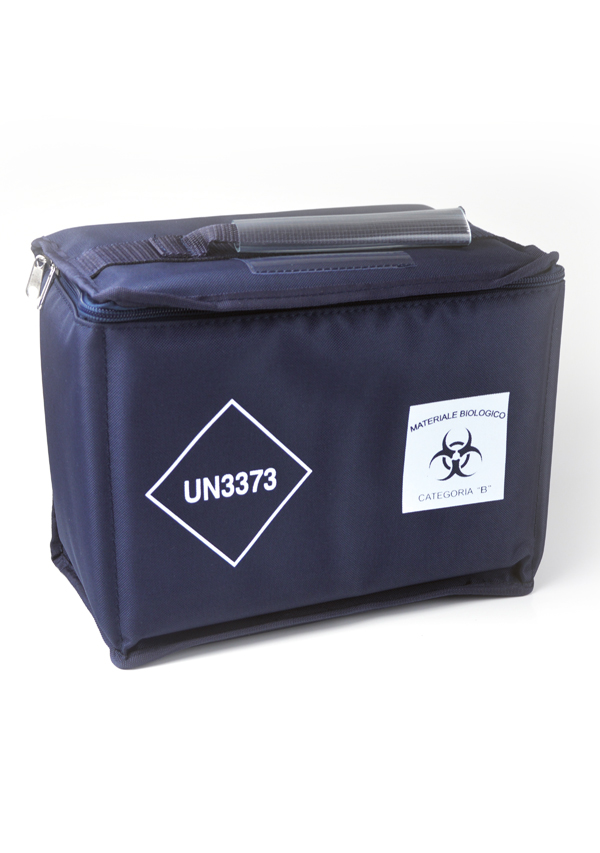

Isothermal bags for biological samples transportation. Available in different sizes, they are ideal to contain cod. 6840 for transporting up to 240 test tubes Ø 12-16 mm. Classified as external container (3° container) according to ADR/RID regulations.

COD.6708 Dim. 290 x 170 x 220 mm. Test tubes n° 40   COD.6724 Dim. 480 x 300 x 220 mm. Test tubes n° 120

COD.6716 Dim. 340 x 300 x 220 mm. Test tubes n° 80   COD.6748 Dim. 450 x 270 x 400 mm. Test tubes n° 240

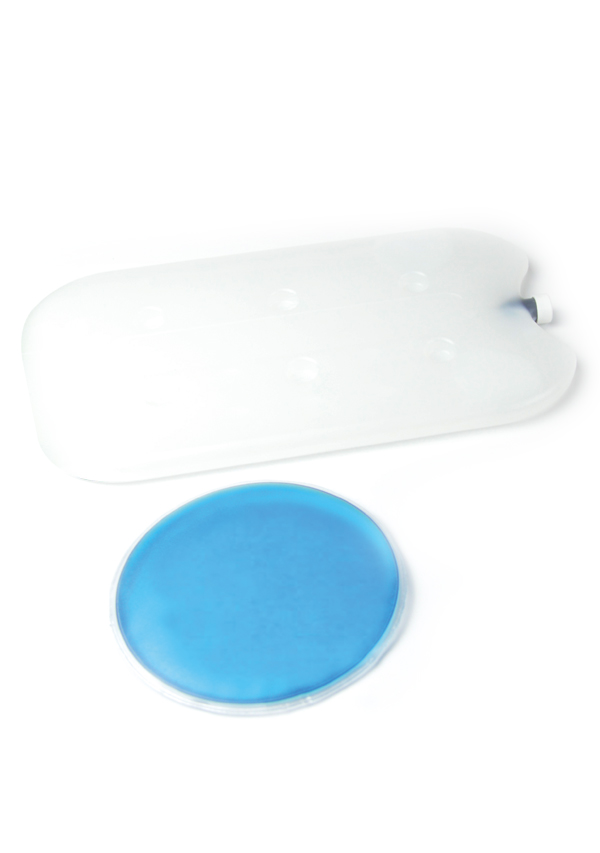

Water freezing packs (ice packs), thin type, particularly suitable for use in inner pockets of the isothermal bags.
